The 60BP new spray gun is a medium-pressure and high-atomized particle automatic spray gun. Its design meets the requirements of precision spraying of various small and medium-sized workpieces; it is suitable for the combination of automatic spraying line
138-2690-0216 / 0769-82107906

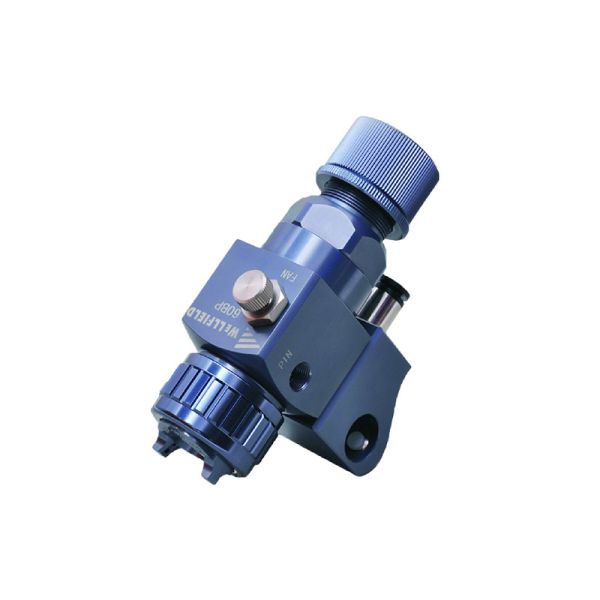

Model: WF-60BP
Type:
The spray gun has a compact structure and a split design, the gun body is light, beautiful and durable, and more convenient for maintenance
Adopt high-precision stepless adjustment and fine-tuning, which can be adjusted freely and accurately and its required flow rate
Fine atomization, 10%-20% higher adhesion rate than traditional medium pressure spray gun
Perfect ergonomics and smooth gun body, with recyclable paint design, so that the paint is not easy to be blocked in the gun body
The spray amplitude precision adjustment knob is designed on the upper part of the gun body, and the spray amplitude can be adjusted with one hand to achieve an efficient spraying effect.
Double solenoid valve control, realize the use of dust removal first and then spraying
The 60BP new spray gun is a medium-pressure and high-atomized particle automatic spray gun. Its design meets the requirements of precision spraying of various small and medium-sized workpieces; it is suitable for the combination of automatic spraying line
138-2690-0216 / 0769-82107906
Model: WF-60BP
Type:
The spray gun has a compact structure and a split design, the gun body is light, beautiful and durable, and more convenient for maintenance
Adopt high-precision stepless adjustment and fine-tuning, which can be adjusted freely and accurately and its required flow rate
Fine atomization, 10%-20% higher adhesion rate than traditional medium pressure spray gun
Perfect ergonomics and smooth gun body, with recyclable paint design, so that the paint is not easy to be blocked in the gun body
The spray amplitude precision adjustment knob is designed on the upper part of the gun body, and the spray amplitude can be adjusted with one hand to achieve an efficient spraying effect.
Double solenoid valve control, realize the use of dust removal first and then spraying
Features:
1. The spray gun has a compact structure and a split design. The gun body is light, beautiful and durable, and more convenient for maintenance.
2. Adopt high-precision stepless adjustment and fine-tuning, which can be adjusted freely and precisely and its required flow rate.
3. The atomization is fine, and the adhesion rate is 10%-20% higher than that of the traditional medium pressure spray gun.
4. Perfect ergonomics and smooth gun body, with recyclable paint design, so that the paint is not easy to be blocked in the gun body.
5. The spray amplitude precision adjustment knob is designed on the upper part of the gun body, and the spray amplitude can be adjusted with one hand to achieve an efficient spraying effect.
6. Double solenoid valve control, realize first dust removal and then spray application.
Scope of application: plastic parts of electronic appliances, wood furniture, hardware parts of electronic products, automobile bumpers, etc.
60BP automatic spray gun technical parameters
| model | Coating supply method | Coating nozzle caliber (Φmm) | Spraying distance(mm) | Air pressure(Mpa) | Applicable air cap model | Spray pattern(mm) | Atomized shape | weight（g） |
| WF-60BP-BG | Pressure feed | 0.8 | 100~150 | 0.3~0.4 | WF-BE-180 | 180 | sector | 600 |
| WF-60BP-BC | 1.1 | WF-BE-160 | 160 | |||||
| WF-60BP-BE | 1.3 |
