60BF is a medium and low pressure automatic air spray gun, a high-precision matching spray gun specially designed for automatic spraying machines and robots. It can be used in medium and low voltage conversion, and has the advantage of one machine for two
138-2690-0216 / 0769-82107906

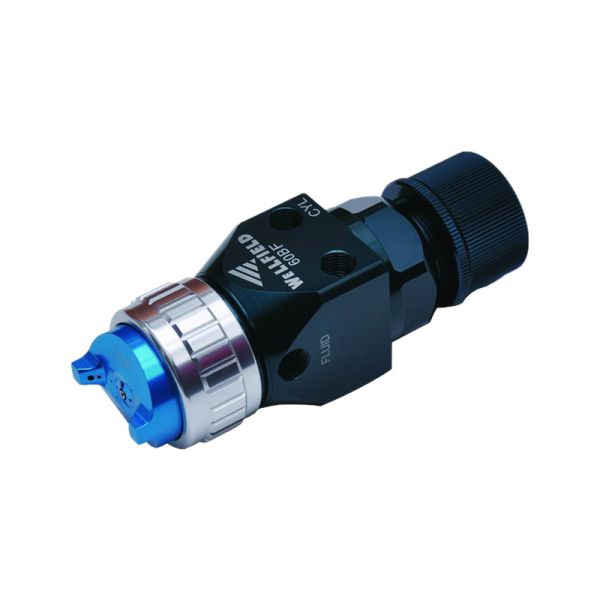

Model: WF-60BF
Type:
Atomizing air, angular air, can be independently controlled, remotely adjust the spray range during spraying, reducing paint waste
Designed with paint circulation for fast settling paint
Small size and light weight, it can be used with spraying robots and automatic coating machines to improve control flexibility
One machine for two purposes; this type of spray gun can be used as a medium pressure spray gun or a low pressure spray gun, reducing the trouble of selection
60BF is a medium and low pressure automatic air spray gun, a high-precision matching spray gun specially designed for automatic spraying machines and robots. It can be used in medium and low voltage conversion, and has the advantage of one machine for two
138-2690-0216 / 0769-82107906
Model: WF-60BF
Type:
Atomizing air, angular air, can be independently controlled, remotely adjust the spray range during spraying, reducing paint waste
Designed with paint circulation for fast settling paint
Small size and light weight, it can be used with spraying robots and automatic coating machines to improve control flexibility
One machine for two purposes; this type of spray gun can be used as a medium pressure spray gun or a low pressure spray gun, reducing the trouble of selection
Features:
1. The atomizing air and angular air can be independently controlled, and the spray range can be adjusted remotely during spraying to reduce the waste of paint.
2. There is a paint cycle design for the paint that settles quickly.
3. Small size and light weight. It can be used in spraying robots and automatic coating machines to improve control flexibility.
4. One machine for two purposes; this spray gun can be used as a medium-pressure spray gun or a low-pressure spray gun, reducing the trouble of selection.
Scope of application: precision spraying of plastic parts such as mobile phones and computers, vacuum cleaners, beauty and hairdressing appliances, and hardware and woodware.
60BF automatic spray gun technical parameters：
| model | Coating supply method | Coating nozzle caliber (Φmm) | Spraying distance(mm) | Air pressure(Mpa) | Applicable air cap model | Spray pattern(mm) | Atomized shape | weight（g） |
| WF-60BF-AG | Pressure feed | 0.8 | 100~150 | 0.25~0.35 | AP-1259-809MT | 190 | sector | 250 |
| WF-60BF-GE | 1 | |||||||
| WF-60BF-MB | 1.3 |
