Automatic air spray gunReturn

Overview

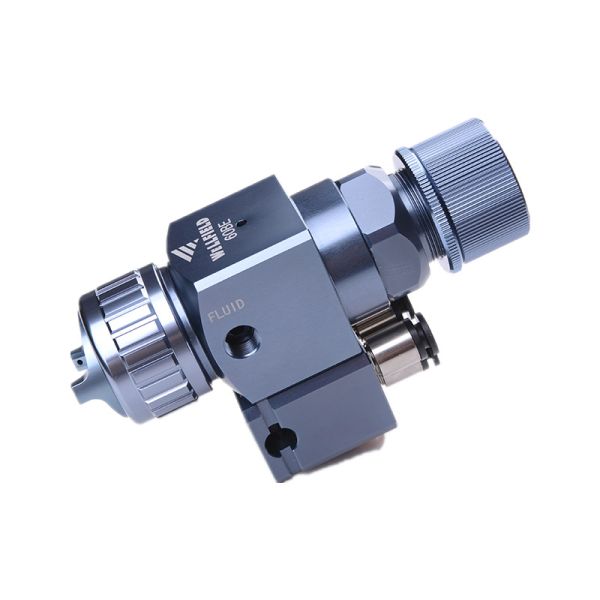

60BE is a LVMP type automatic spray gun, suitable for spraying machines, reciprocating machines and spraying lines. It has ultra-fine and ultra-uniform coating effects for colored coatings.

Service Hotline

138-2690-0216 / 0769-82107906

Parameter

Model: WF-60BE

Type:

Split design, convenient for disassembly and maintenance

Medium and low pressure atomization can reduce paint scattering, improve paint adhesion rate, and reduce paint waste

The center air and the corner air are controlled independently, and the spray frame size can be changed remotely. When the metallic paint is easy to deposit, the paint can be recycled.

For brightly colored paints, it has ultra-fine atomization and adheres to the product ultra-uniformly.

Automatic air spray gunReturn

Overview

60BE is a LVMP type automatic spray gun, suitable for spraying machines, reciprocating machines and spraying lines. It has ultra-fine and ultra-uniform coating effects for colored coatings.

Service Hotline

138-2690-0216 / 0769-82107906

Parameter

Model: WF-60BE

Type:

Split design, convenient for disassembly and maintenance

Medium and low pressure atomization can reduce paint scattering, improve paint adhesion rate, and reduce paint waste

The center air and the corner air are controlled independently, and the spray frame size can be changed remotely. When the metallic paint is easy to deposit, the paint can be recycled.

For brightly colored paints, it has ultra-fine atomization and adheres to the product ultra-uniformly.

  • Details
  • Parameter

Features:

1. Split design, convenient for disassembly and maintenance.

2. Medium and low pressure atomization can reduce paint scattering, improve paint adhesion rate, and reduce paint waste.

3. It adopts independent control of center air and corner air, which can change the spray frame size remotely. When using metallic paint that is easy to deposit, adopt the paint recyclable structure.

4. It has ultra-fine atomization for the brightly colored paint, and adheres to the product ultra-uniformly.


Scope of application: precision spraying of plastic parts such as mobile phones and computers, vacuum cleaners, beauty and hairdressing appliances, and hardware and woodware.


60BE automatic spray gun technical parameters:

modelCoating supply methodCoating nozzle caliber (Φmm)Spraying distance(mm)Air pressure(Mpa) Applicable air cap modelSpray pattern(mm)Atomized shapeweight(g)
WF-60BE-FBPressure feed0.6100~1500.25~0.35WF-AP-A1800180sector450
WF-60BE-FN0.8
WF-60BE-FG1.1
WF-60BE-FD1.3
