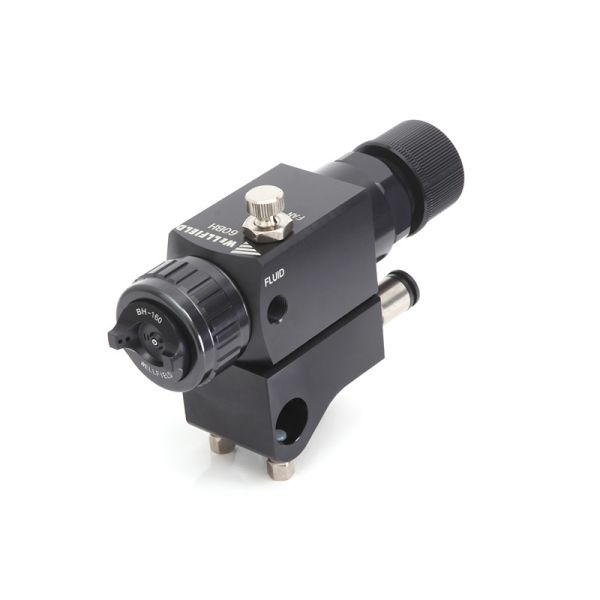

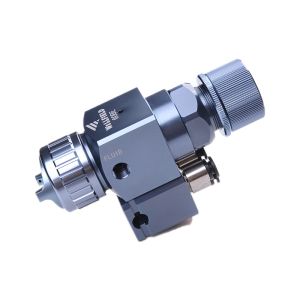

60BH is a medium pressure high atomization automatic spray gun. It has good atomization effect, high transmission efficiency, and split design is convenient for cleaning. The stainless steel needle and nozzle components of the resistant stainless steel ar
138-2690-0216 / 0769-82107906
Model: WF-60BH
Type:
Good atomization effect, high transmission efficiency, split design
Wear-resistant stainless steel needle and nozzle components are suitable for water-based and solvent-based coatings
The double groove design of the air cap has changed the shortcomings of the traditional porous design of the spray gun. The paint is not easy to stick to the top of the air cap, the air cap is not easy to be blocked, the cleaning is more convenient and quick, and the atomization is more fine.
A variety of precision air caps to meet various spraying requirements and high cost performance
60BH is a medium pressure high atomization automatic spray gun. It has good atomization effect, high transmission efficiency, and split design is convenient for cleaning. The stainless steel needle and nozzle components of the resistant stainless steel ar
138-2690-0216 / 0769-82107906
Model: WF-60BH
Type:
Good atomization effect, high transmission efficiency, split design
Wear-resistant stainless steel needle and nozzle components are suitable for water-based and solvent-based coatings
The double groove design of the air cap has changed the shortcomings of the traditional porous design of the spray gun. The paint is not easy to stick to the top of the air cap, the air cap is not easy to be blocked, the cleaning is more convenient and quick, and the atomization is more fine.
A variety of precision air caps to meet various spraying requirements and high cost performance
Features:
1. Good atomization effect, high transmission efficiency, split design.
2. Wear-resistant stainless steel needle and nozzle components are suitable for water-based and solvent-based coatings.
3. The double groove design of the air cap has changed the shortcomings of the traditional porous design of the spray gun. The paint is not easy to stick to the top of the air cap, the air cap is not easy to be blocked, the cleaning is more convenient and quick, and the atomization is more refined.
4. A variety of precision air caps can meet various spraying requirements and have a high cost performance.
Scope of application: plastic parts, hardware parts, wood furniture and office furniture, ceramics, etc.
60BH automatic spray gun technical parameters：
| model | Coating supply method | Coating nozzle caliber (Φmm) | Spraying distance(mm) | Air pressure(Mpa) | Applicable air cap model | Spray pattern(mm) | Atomized shape | weight（g） |
| WF-60BH-BG | Pressure feed | 0.8 | 100~150 | 0.25~0.35 | WF-180-BP36 | 200 | sector | 600 |
| WF-60BH-BC | 1.1 | WF-BH-160 | 160 | |||||
| WF-60BH-BE | 1.3 | WF-BH-180 | 180 | |||||
| WF-60BH-BD | 1.5 |
