Automatic spray gun for water-based paintReturn

Overview

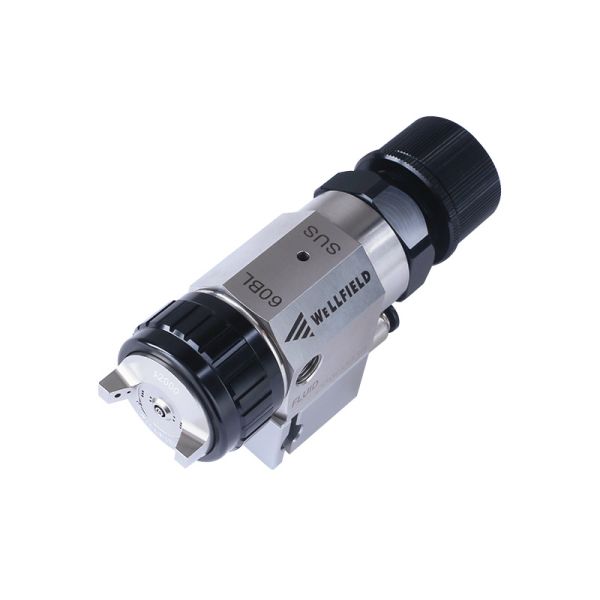

60BL is an automatic air spray gun with ultra-high paint rate and ultra-fine atomization. It has the characteristics of high conveying efficiency, good atomization effect, and strong paint adhesion. The whole body fluid channel stainless steel design, oil

Service Hotline

138-2690-0216 / 0769-82107906

Parameter

Model: WF-60BL

Type:

Stainless steel gun body design

Medium and low pressure atomization can reduce paint scattering, improve paint adhesion rate, reduce paint waste, and cost-effective

It adopts independent control of center air and corner air, and the size of spray frame can be changed remotely. When using metallic paint that is easy to precipitate, adopt a paint recyclable structure

For spraying bright colors, powder coatings, ultra-fine atomization and anti-blocking functions. Make the paint adhere to the product super uniformly

Automatic spray gun for water-based paintReturn

Overview

60BL is an automatic air spray gun with ultra-high paint rate and ultra-fine atomization. It has the characteristics of high conveying efficiency, good atomization effect, and strong paint adhesion. The whole body fluid channel stainless steel design, oil

Service Hotline

138-2690-0216 / 0769-82107906

Parameter

Model: WF-60BL

Type:

Stainless steel gun body design

Medium and low pressure atomization can reduce paint scattering, improve paint adhesion rate, reduce paint waste, and cost-effective

It adopts independent control of center air and corner air, and the size of spray frame can be changed remotely. When using metallic paint that is easy to precipitate, adopt a paint recyclable structure

For spraying bright colors, powder coatings, ultra-fine atomization and anti-blocking functions. Make the paint adhere to the product super uniformly

  • Details
  • Parameter

Features:

1. Stainless steel gun body design.

2. Medium and low pressure atomization can reduce paint scattering, improve paint adhesion rate, reduce paint waste, and cost-effective.

3. The center air and corner air are controlled independently, and the spray frame size can be changed remotely. When using metallic paint that is easy to precipitate, adopt a paint recyclable structure.

4. For spraying bright colors, powder coatings, ultra-fine atomization and anti-blocking functions. Make the coating adhere to the product super uniformly.


Scope of application: precision spraying of plastic shells such as mobile phones and computers, vacuum cleaners, beauty and hairdressing appliances, and non-stick coatings for kitchenware, hardware, woodware, etc.


60BL automatic spray gun technical parameters:

modelCoating supply methodCoating nozzle caliber (Φmm)Spraying distance(mm)Air pressure(Mpa) Applicable air cap modelSpray pattern(mm)Atomized shapeweight(g)
WF-60BL-A1800-FKPressure feed2130~2000.1~0.4WF-AP-A1800180-200sector650
WF-60BL-A1800-FA1.5
WF-60BL-A1800-FD1.3
WF-60BL-A1800-FM1.2
WF-60BL-A2000-FG1.1WF-AP-A2000
WF-60BL-A2000-FN0.8
WF-60BL-A2000-FB0.6
